An engineering reference, not a catalogue. Each facade type is matched to its real project constraints — fixture selection, structural limits and control planning — with key figures sourced from project files.
Tianjin Haitang Building
Live! Hotel Maryland
more in preparation
Start From the Facade Type
Facade lighting is not one problem. A parametric cladding, a glass curtain wall and a stone elevation each impose different constraints on the fixture, the mounting and the control system. Find the type that matches your project — each section connects the condition to the engineering decision.
Pixel-Integrated Curtain Wall
The luminaire is built into the facade package, not added to its surface. Each structural node becomes one addressable pixel — so the fixture shape is driven by the architecture, and a catalogue product usually cannot be used without custom development.
A repeating geometric pattern — hexagons, stars, petals — with a consistent structural node at each unit.
The fixture must be invisible by day, reading as cladding rather than as a light fitting.
Each position is individually addressed for pixel animation, not uniform wash lighting.
Weight per node is a hard structural limit. No welding to primary structure.
A catalogue fixture cannot match the node

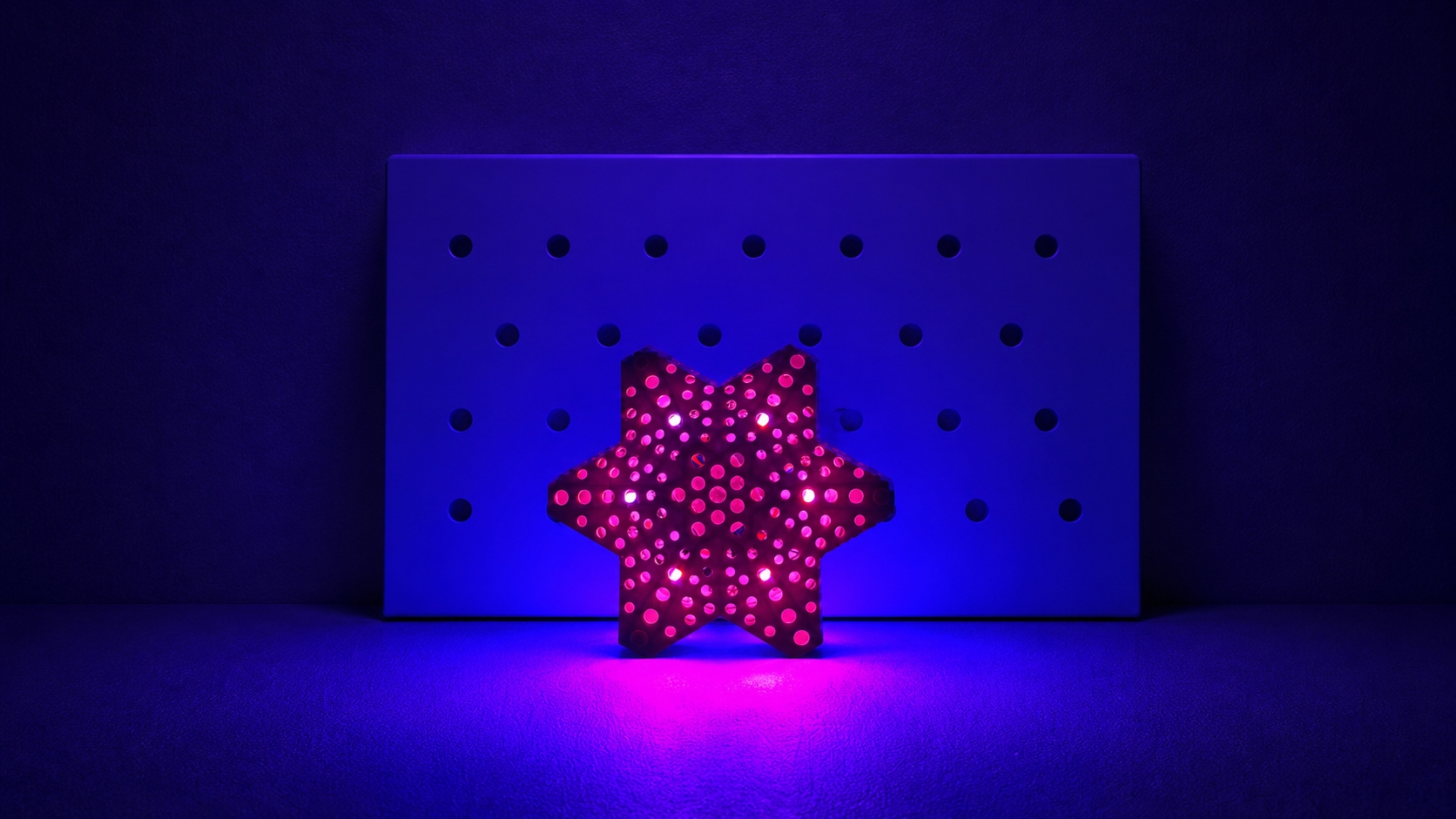

The Haitang facade uses a six-pointed star derived from the crabapple flower (海棠花). Each star is a structural element in the aluminium curtain wall, and the fixture must match that exact geometry. No existing model fit the shape and scale.
Resolved — TPK developed the LPM-MJ-HEX130-DMX from the architect's concept sketch: a six-pointed star aluminium body with a PC face cover, seated directly into the node recess with a plug-in clip. Concept → samples → weight, thermal and aging validation → mould lock.
Face apertures exposed the LED in daylight
Node bracket has a maximum fixture weight
4,495 fixtures in a dense array — thermal load
Tianjin Haitang Building
An 11-storey office building with a crabapple-derived star curtain wall, ~8,000 m². TPK developed the LPM-MJ-HEX130-DMX from concept to production specifically for this facade — validated through weight testing, thermal simulation and iterative sample review.
LPM-MJ-HEX130-DMX Specification Sheet
Dimensions, weight, electrical, IP rating, installation method
Thermal Simulation Report (May 2022)
FEA model, boundary conditions, peak temperature 63.7°C
DMX Address Scheme Template
Channel assignment, repeater placement, Madrix integration notes
Glass Curtain Wall — Slab-Edge Linear
A continuous glowing line at each floor slab edge, with the fixture recessed into the spandrel cavity between floors. From street level only the light is visible — and every decision starts from one number: the cavity depth available to hold the fixture.
A glass curtain wall with a visible horizontal spandrel zone; the intent is a continuous line at each slab edge.
The fixture cavity is built into the framing — access after install means removing glass, not routine maintenance.
Cable entry points are fixed by the curtain wall structure; new penetrations need installer and waterproofing coordination.
For US projects, the fixture must carry ETL or UL listing — CE alone is not accepted under the NEC.
A 1.25-inch cavity sets the entire spec

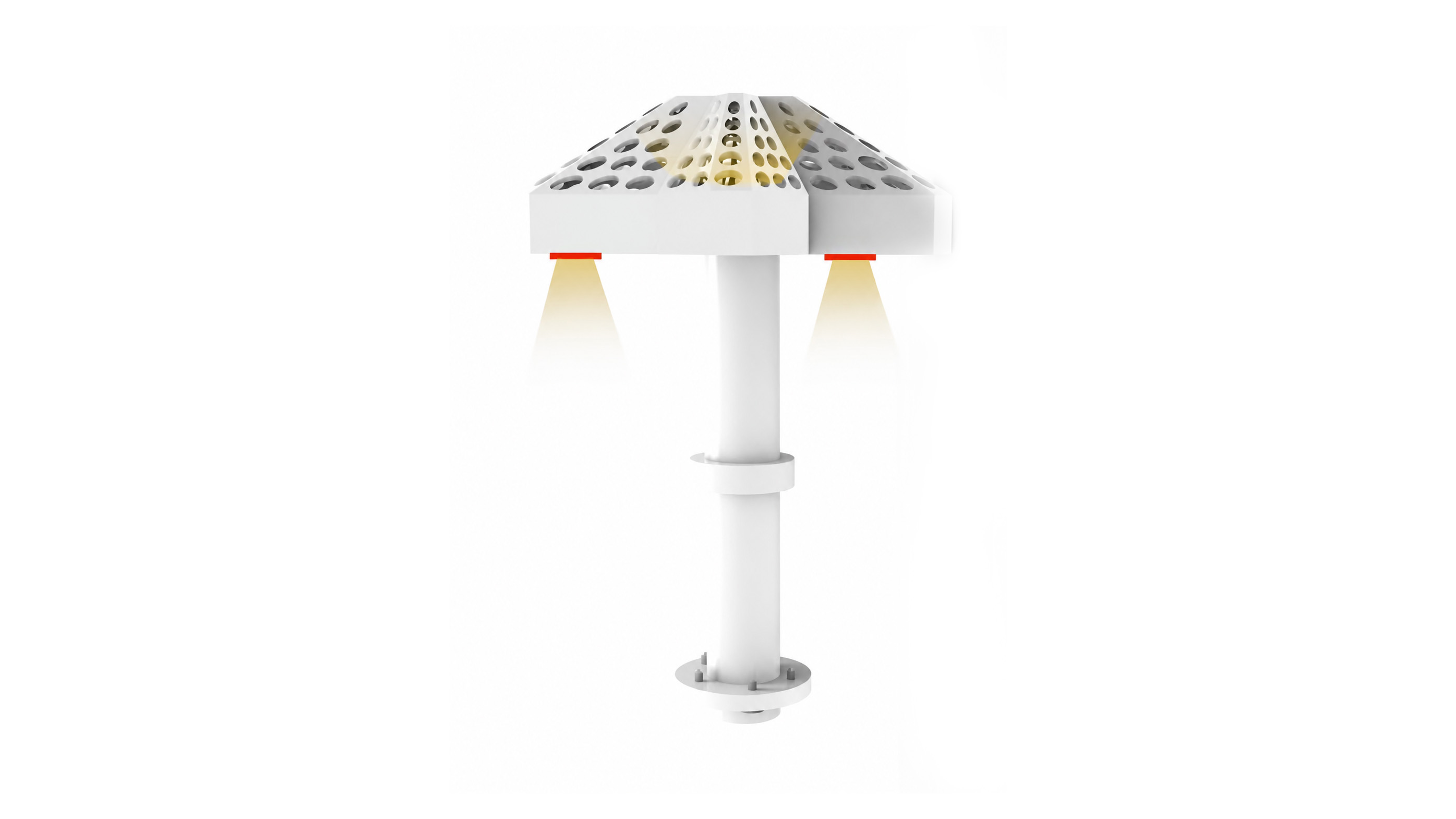

The spandrel cavity at Live! Hotel Maryland is 1.25 inches deep (≈32mm) — independently flagged in the architect's submittal: "Confirm fixture and mounting method will fit within 1.25" cavity." Body, clip and cable termination must all clear it without structural change.
Resolved — The LLS-OP-W30C uses a 30×30mm extrusion; with the flat clip and drainage clearance, assembled depth sits within tolerance. A tempered glass lens was specified over PC, which yellows under multi-year UV exposure and loses output.
Three floor-plate widths — one length won't fit all
10 fixtures per row, no new wall penetrations
ETL listing required for US commercial install
860 fixtures at height — no address fixes after install
Live! Casino & Hotel Maryland
One of the Mid-Atlantic's largest hospitality complexes. 16-floor glass curtain wall with slab-edge linear lighting on three elevations, integrated by Gable Company (Baltimore). TPK supplied 860 ETL-listed LLS-OP-W30C fixtures across three custom lengths.
LLS-OP-W30C Series Specification Sheet
All three lengths (L12 / L6 / L3) — dimensions, electrical, optical, IP, ETL reference
24V DC Voltage Drop Worksheet
Cable sizing for 24V linear runs; T-type distribution wiring diagram
DMX Sequential Address Programming Guide
Continuous-mode assignment; factory pre-programming; field verification
From Brief to Commissioning
The same path applies whether the fixture is custom-developed or selected from the range. Custom projects add sampling and validation rounds before mould lock.
Concept & geometry
Cladding drawings, node dimensions, fixing method.
Sample iteration
2–3 rounds of cover and aperture review before sign-off.
Validation
Weight, thermal, aging — submitted before mould lock.
Production
DMX addresses pre-programmed at factory.
Commissioning
Channel mapping, Madrix scenes, remote support.
Have a facade project in mind?
Send your facade type, cladding drawings or cavity dimensions. Our engineering team will confirm whether a standard fixture fits or custom development is needed — and outline the constraints worth resolving early.
