SP-PZT-R110 /135 /170

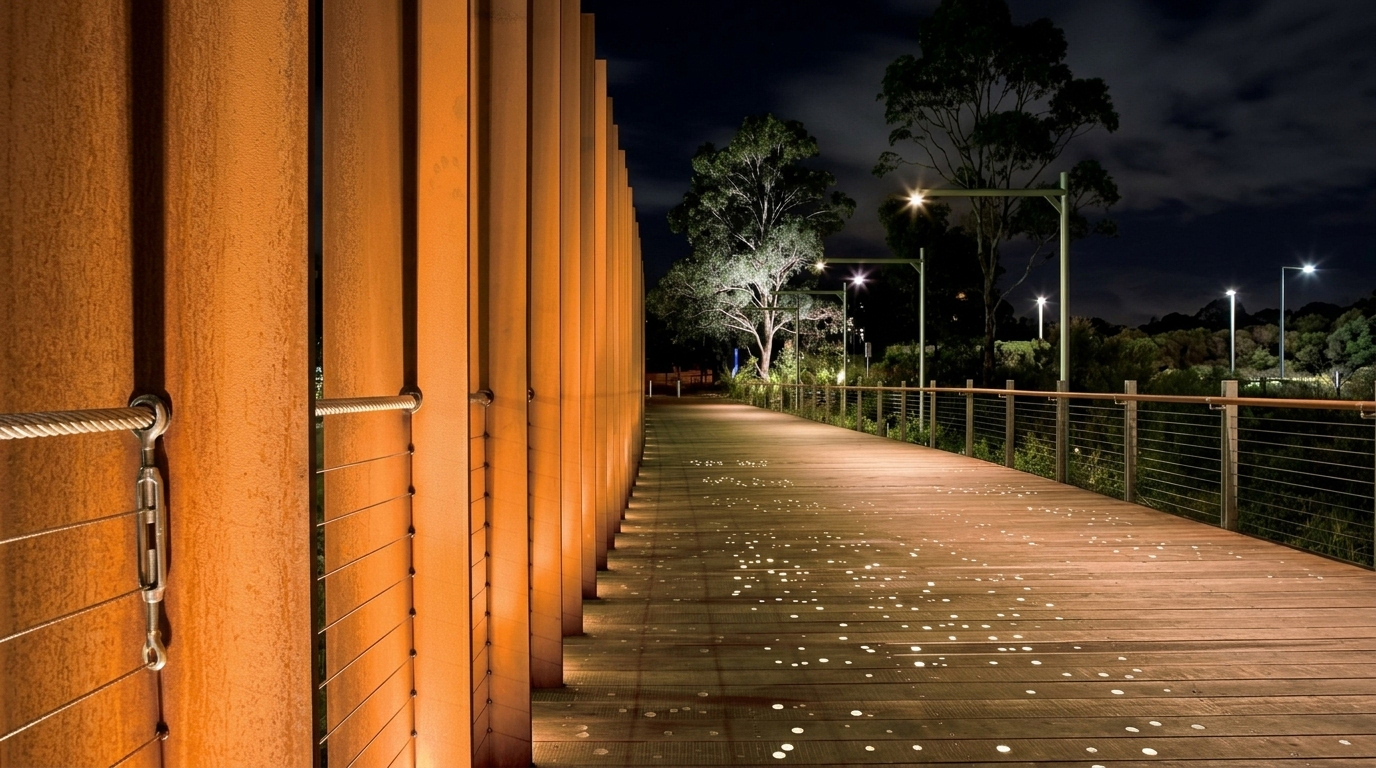

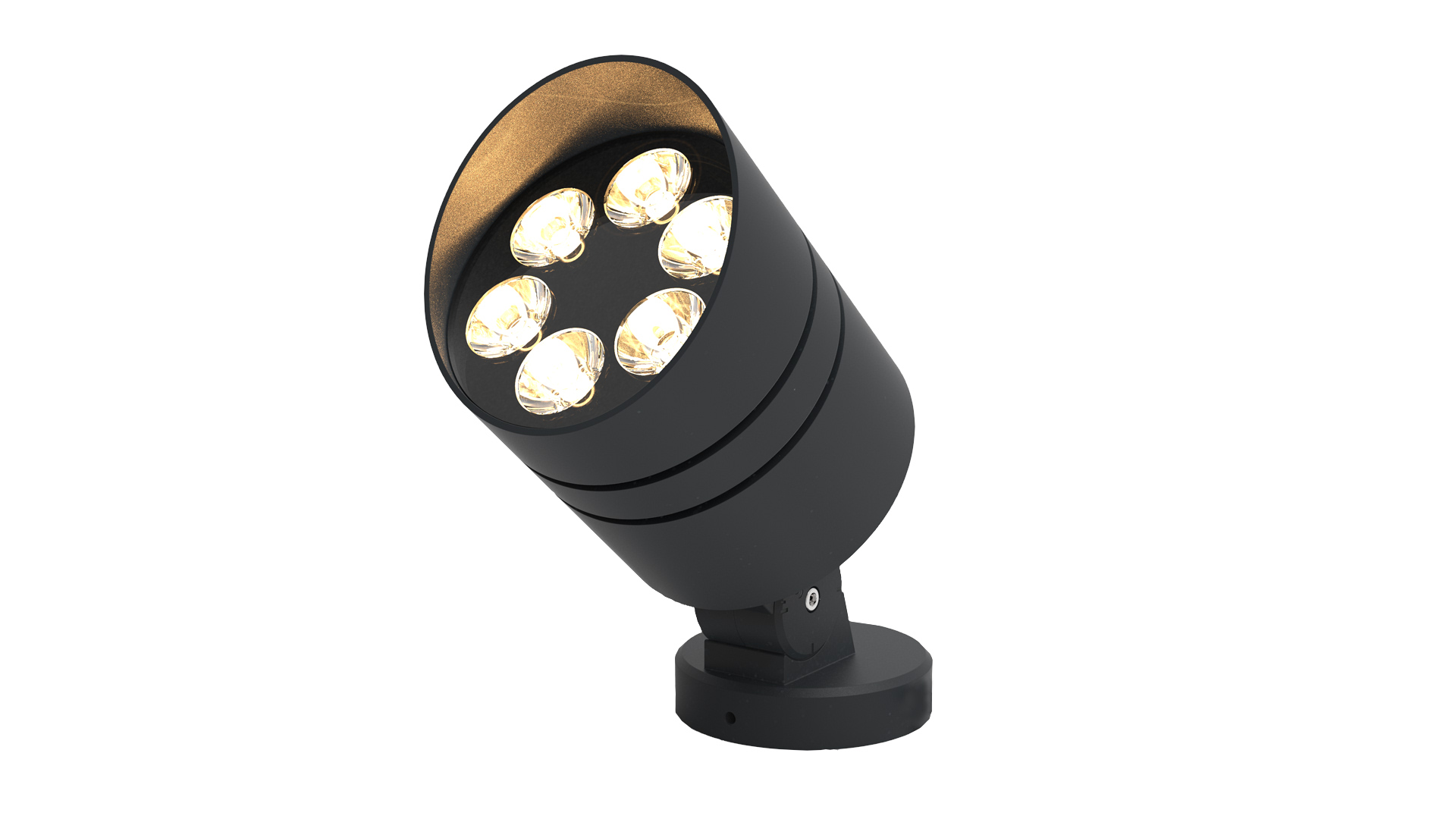

Aluminum profile lamp body floodight, simple appearance design, customizable. This product is mainly used fordecorating and highlighting in building frame, garden, etc. The lighting fixtures use high-power LED chips, high-efficiency PMMA optical lenses, and high transmittance ultra white tempered glass. This series has 3 sizes,multiple lighting angles, and multiple control methods.
2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
10°
20°
25°
35°
40°
45°
60°
30×50°

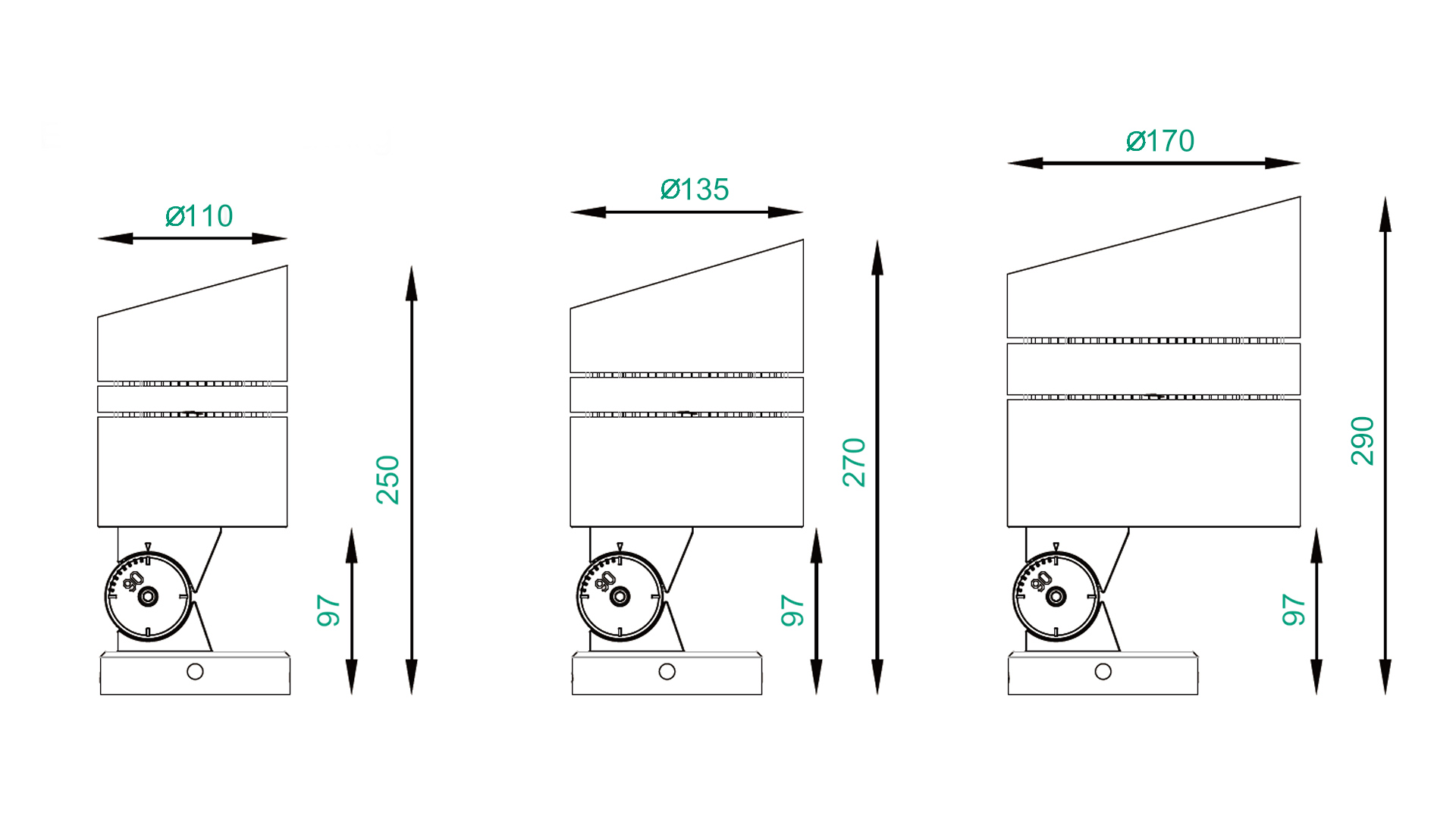

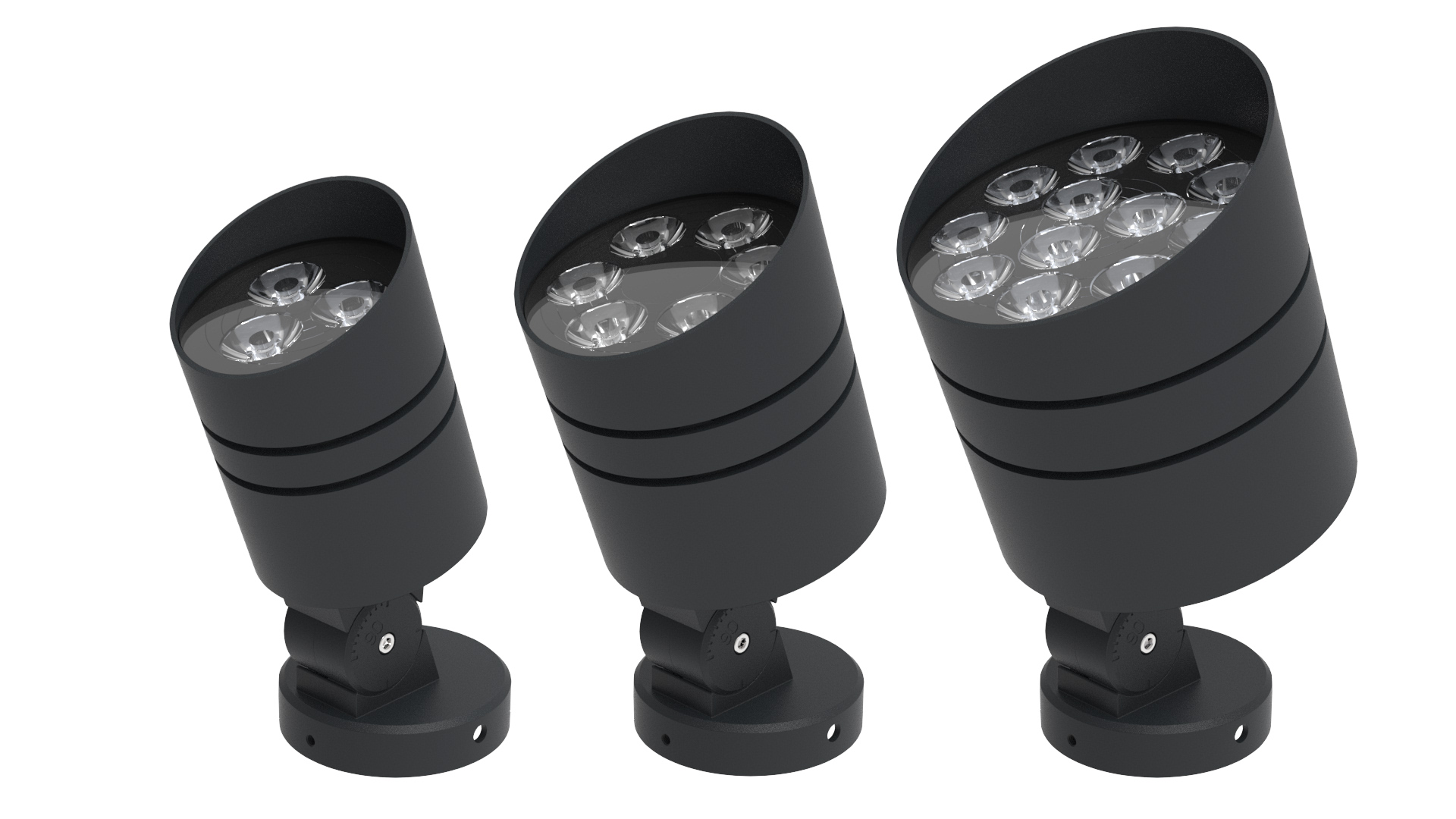

| Model | Length | Power(Max) | Colours Lumen | Package |
|---|---|---|---|---|
| SP-PZT R110 |
φ110mm | 15W |
2700K 3000K
1650lm4000K 5700K
2180lmRGB 1050lm
RGBW 1200lm
|
2.5±5%Kg 8Units/Ctn 63.5*32.5*32.5CM |
| SP-PZT R135 |
φ110mm | 30W |
2700K 3000K
3100lm4000K 5700K
3400lmRGB 2100lm
RGBW 2400lm
|
3±5%Kg 6Units/Ctn 55.5*37.5*34.5CM |
| SP-PZT R170 |
φ110mm | 55W |
2700K 3000K
5700lm4000K 5700K
6200lmRGB 3850lm
RGBW 4400lm
|
4.5±5%Kg 6Units/Ctn 63.5*32.5*32.5CM |
Advantages
Tight Waterproof Structure
Features a robust, structurally sealed waterproof design, providing reliable protection against moisture ingress for outdoor and harsh environments.
Versatile Control and Power Input
Supports high-voltage input, with DMX512/RDM control for flexible, precise operation and dynamic lighting effects.
High-Efficiency Power Output
Base power of 48W, scalable up to 192W (48W×4), delivering high brightness to meet large-area lighting demands with efficient energy use.
Wide Environment Adaptability
Engineered for ultra-low temperature environments, while its neutral design seamlessly integrates into the built environment even during daylight hours.
Optimal Color Mixing and Optics
RGBW mode ensures excellent color mixing, with flexible optical options to customize beam angles and light distribution for diverse scenarios.
Customizable and User-Friendly Installation
Lamp body color is fully customizable, paired with a stylish, well-structured bracket that allows easy scale adjustment and simple installation.
End cap
Signal input cable
Adapter cable
Y-type cable
End cap
